Feature
MH Series
- Centrally-mounted head
- Ideal for boring processing
- Stability, Accuracy and Ball bar performance better.

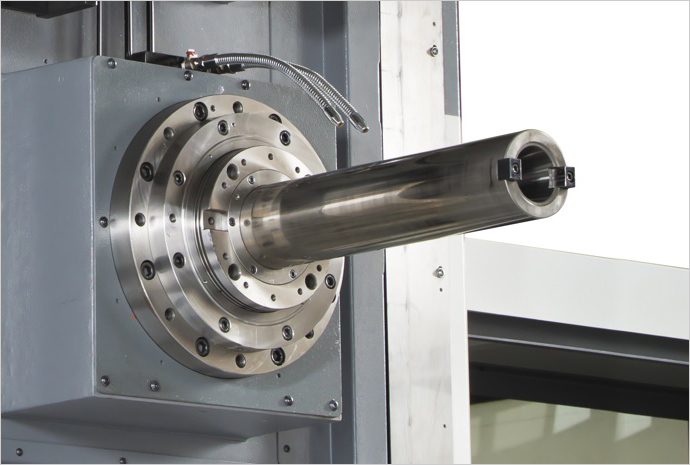

Powerful Spindle 110
- The specially designed spindle outer ring cooling system maintains constant bearing accuracy under normal operating conditions.
- This gear type auto-shift design and grease lubrication system also provides superior machine performance and reliability.
- The spindle and boring bar are made of SACM645 alloy. The spindle has been Nitrided to HRC62~68. This hardness maintains spindle form and insures high reliability. This increased rigidity increases the overall machine capability.
- We use the high quality spindle bearings to ensure machine consistency and a longer machine life.

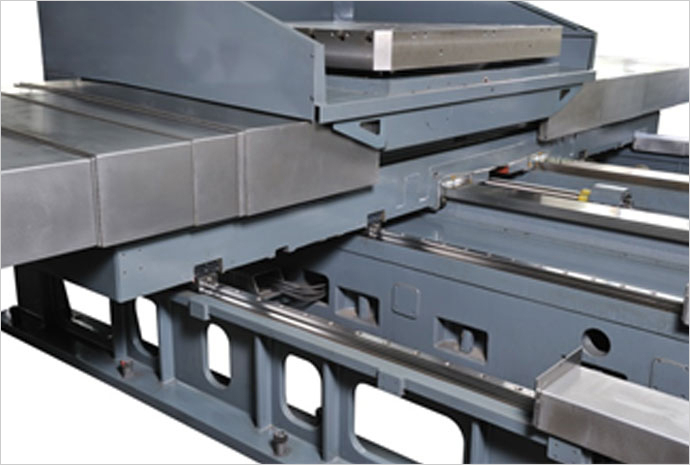

High Precision Slide Ways
- Our auto grease lubricating system provides several advantages for the overall machine capability.
- It not only maintains high accuracy during the long working hours, but also functions perfectly with low speed machining. The high precision ball screw axis transmission provides superior machine stability resulting in highly accurate work pieces.

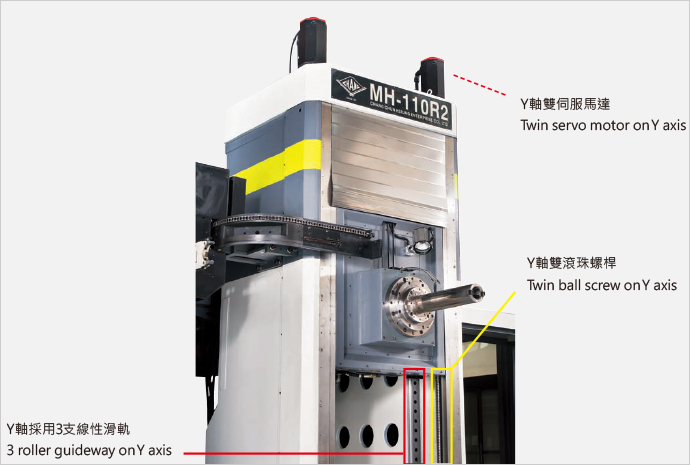

- R2 & R3 provides 2 additional linear slide ways to enhance durability and eliminate unwanted deflection. This significantly improves machine cutting accuracy

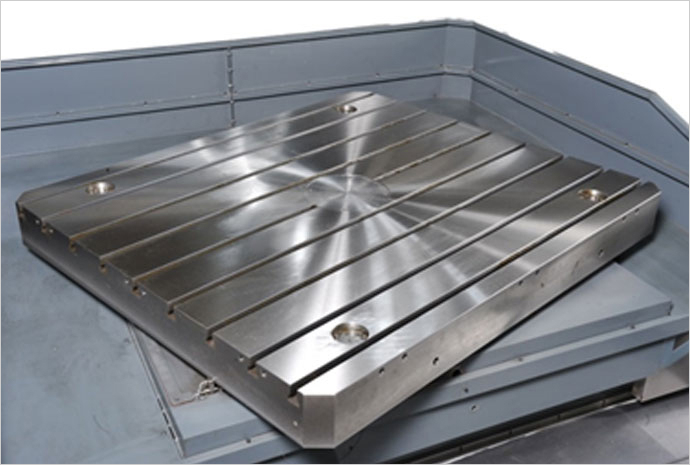

Rotary Working Table
The bed slideway is box way, adopted roller bearing and worm-gear equipped force lubricated system. Table center equipped Heidenhain rotary encoder assure index accuracy. Table equipped Hydraulic clamping system & positioning pin, assure indexing angle 0°, 90°, 180°, 270° heavy cutting accuracy.

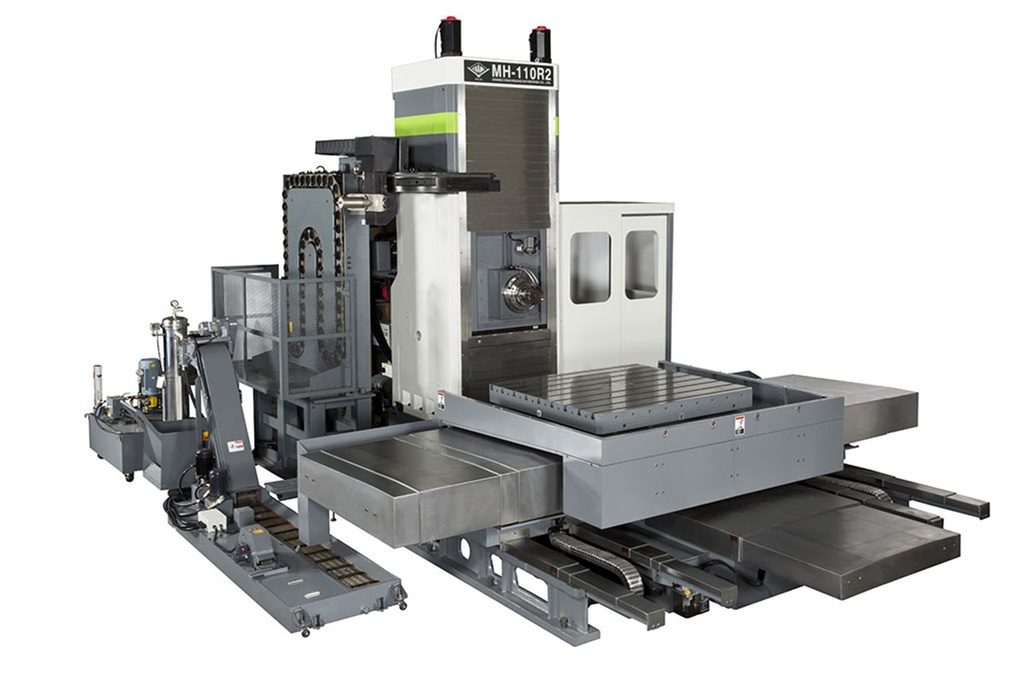

MH-110R2 / MH-110R3
| Specification | Unit | MH-110R2 | MH-110R3 |
| Spindle |
|||
| Spindle Motor (Cont./30min) | kw | 22 / 26 | 22 / 26 |
|
Spindle speed (Max.)
| rpm | Standard : 2500 Optional : 4000 * (Only applicable to spindle speed 4000rpm) | Standard : 2500 Optional : 4000 * (Only applicable to spindle speed 4000rpm) |
| Spindle Taper | ISO 50 / BT-50 | ISO 50 / BT-50 | |
| Spindle Diameter | mm | Ø110 | Ø 110 |
| Spindle Max. Torque | Nm | 22 / 26 kw : 910 | 22 / 26 kw : 910 |
| Travel | |||
| Work Table Travel X axis (Horizontal) | mm | 2000 | 3000 |
| Spindle Travel Y axis (Vertical) | mm | 1600 | 2000 |
| Working table travel Z axis (Vertical) | mm | 1300 | 1500 |
| Spindle travel W axis | mm | Standard : 600 Optional : 400 | Standard : 600 Optional : 400 |
| Distance from spindle nose to table center | mm | 723 ~ 2023 | 723 ~ 2223 |
| Distance from spindle center to table surface | mm | 0 ~ 1600 | 0 ~ 2000 |
| Rotary working table | |||
| Table size | mm | 1400 × 1600 | 1600 × 1800 |
| T-Slot | mm × No. | 22 × 9 | 22 × 9 |
| Max. loading weight | kg | 8,500 | 10,000 |
| Index | degree | 0.001 | 0.001 |
| Max. rotating dia. | mm | 2126 | 2408 |
| Rapid rotation of table | rpm | 0.8 | 0.8 |
| Feed | |||
| Rapid(XYZW axis) | mm / min | XYZ axis＝10000 / W axis＝3000 | XYZ axis＝10000 / W axis＝3000 |
| Feed rate(X / Y axis) | mm / min | 1 - 5000 | 1 - 5000 |
| Feed rate(W axis) | mm / min | 1 - 5000 | 1 - 5000 |
| Machine size (L×W×H) | mm | 5365 × 8560 × 4450 | 6350 × 8560× 4 845 |
| Machine weight | Kg | 29000 | 32000 |
| Controller | Fanuc / Siemens / Heidenhain | Fanuc / Siemens / Heidenhain |
| Standard accessories |
Optional accessories |
| Tool and Tool Box |
ATC (Automatic Tool Changer ) |
| Foundation Screws and pads | Coolant Through Spindle |
| Spindle Oil Cooler | Linear Scale |
| Working Lamp | Spindle Support |
| Electrical Cabinet Cooler | Facing head |
| X axis Dust Cover | Transformer |
| Y axis Dust Cover | Splash Guard For Rotary Table |
| Z axis Dust Cover | Splash Guard For Operator |
| MPG (Manual Pause Generator) | Workpiece Measuring Device |
| Automatic Lubrication System | |
| Screw Chip Conveyor | |
| Steel Belt Chip Conveyor (with cart) |
